MM TC286N-93-G-T10 IC28
Interchangeable cemented carbide blank heads
specificațiile produsului

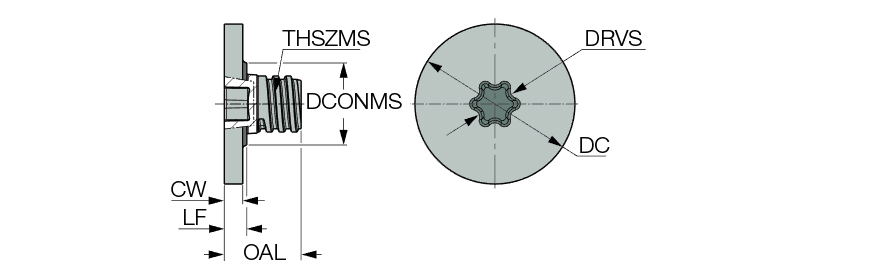

| Material de Prelucrat | | Metale Neferoase | | Acoperire | Uncoated |
| Cutting Diameter (DC) | 28.6 mm | Materialul Corpului | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Unitate | M |
| Sort | IC28 | Connection Diameter Machine Side (DCONMS) | 15.3 mm |
| Material Muchiei Aschietoare | Carbide | Cutting Width (CW) | 9.3 mm |
| Overall Length (OAL) | 21.9 mm | Functional Length (LF) | 10.15 mm |
| Tipul Masuratorii | Metric | Drive Size (DRVS) | 40 mm |
caracteristicile produsului
| Descrierea Familiei | Interchangeable cemented carbide blank heads | COO | Israel |

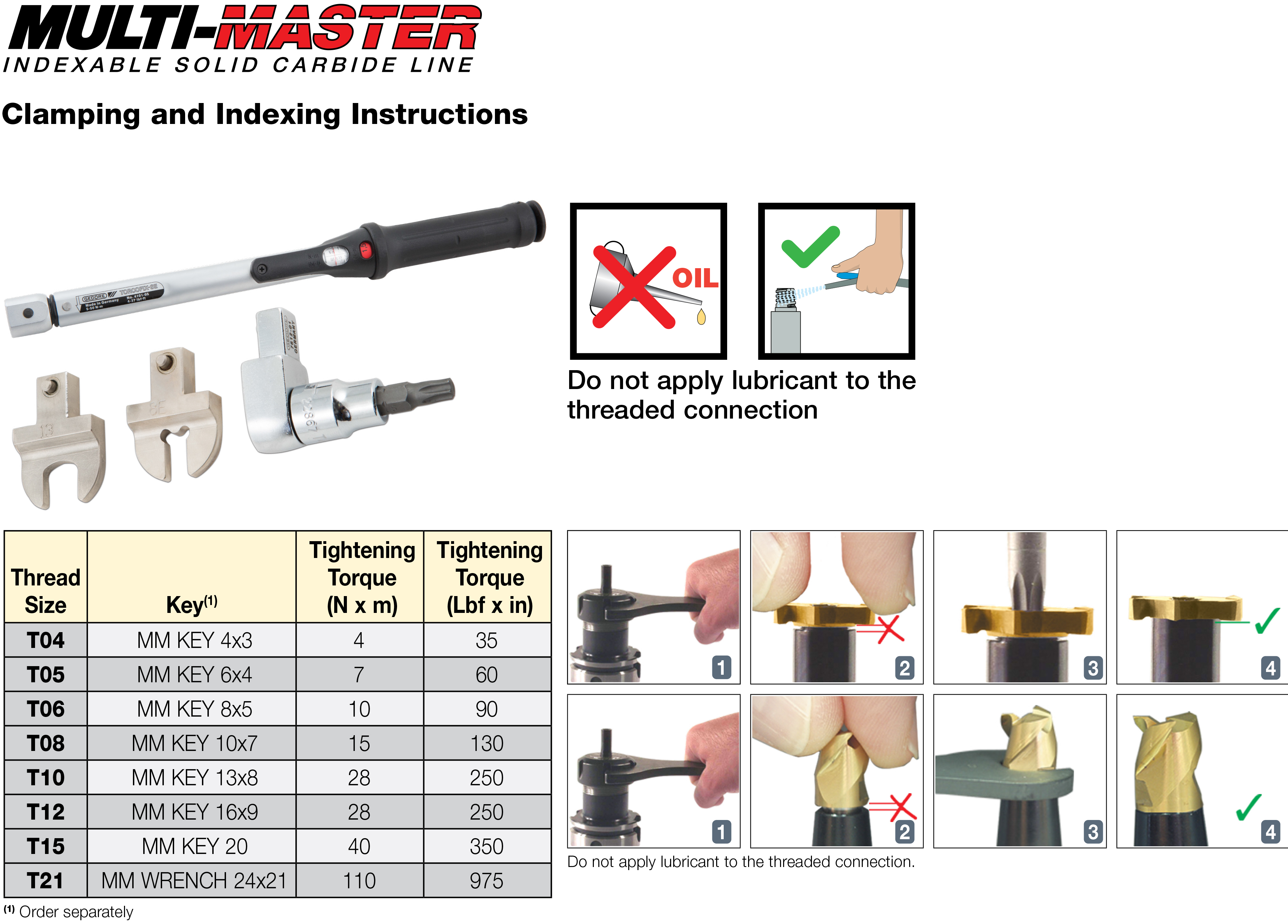

| Remarci | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Greutate Colet
0.1034
