specificațiile produsului
| Filet Standard | THFT | | Material de Prelucrat | | Oţel | Oţel Inoxidabil | Fontă | Materiale Dure | Aliaje Termo Rezistente | |

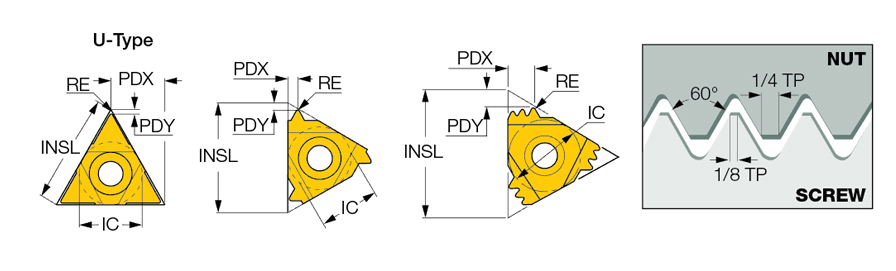

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Cutting Item Count (CICT) | 1 |
| Thread Pitch (TP) | 2.5 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.36 mm | Tipul Masuratorii | Metric |
| Sort | IC908 | Materialul Corpului | Carbide |
| Acoperire | TiAlN | Thread Form Type (THFT) | M60 |
| Material Muchiei Aschietoare | Carbide | Unitate | M |
| cerere | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 1.1 mm |
caracteristicile produsului
| Descrierea Familiei | External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry. | Numele Familiei | ER/L-ISO |

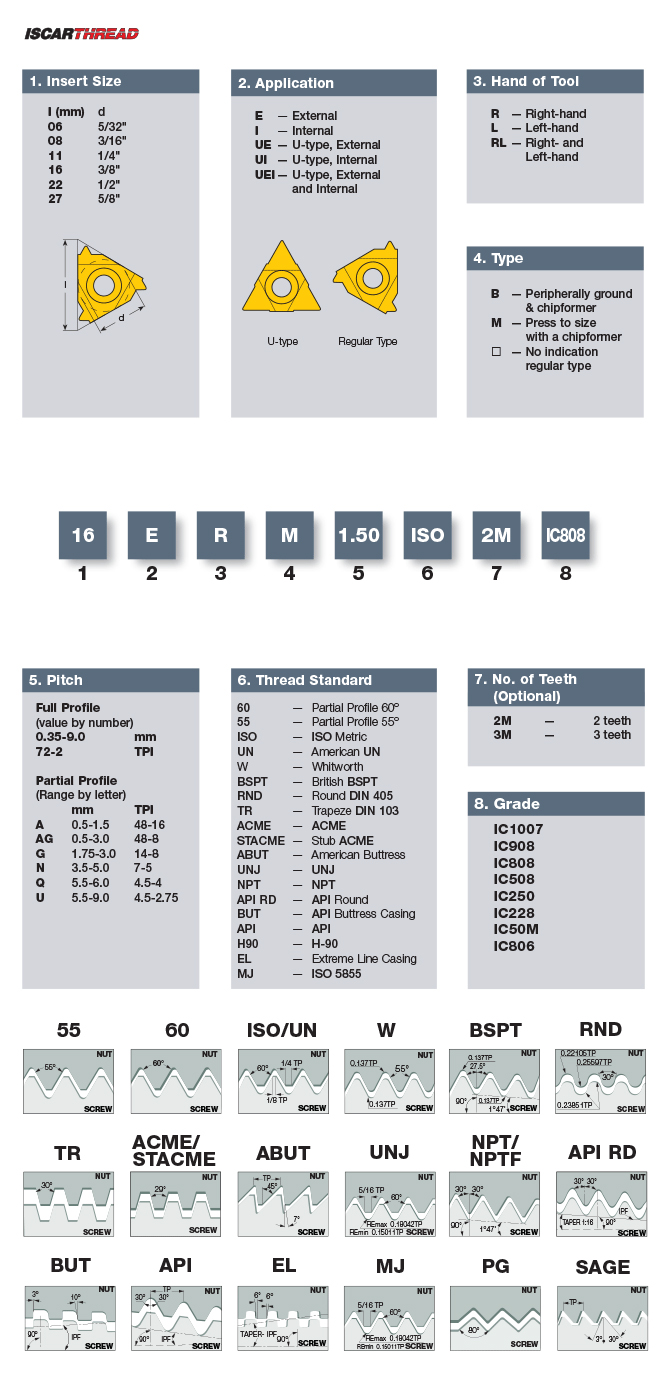

| Remarci | For Insert Identification System, see page For threading between walls use GRIP-type inserts TIP-ISO class: 6g | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.0070
Nume

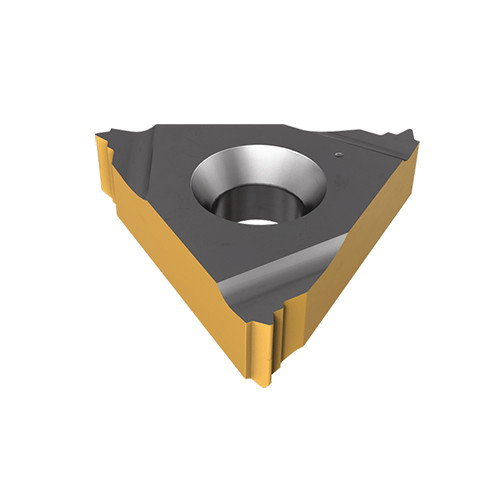

Laydown Threading Indexable Inserts
Numele Familiei
ER/L-ISO
Nume de Marca
Iscar
