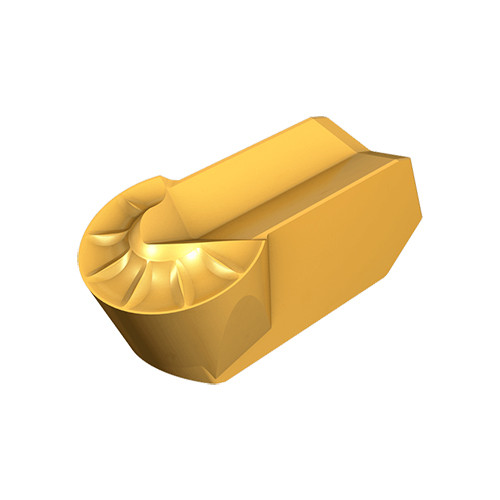

GIMY 525 IC20
specificațiile produsului

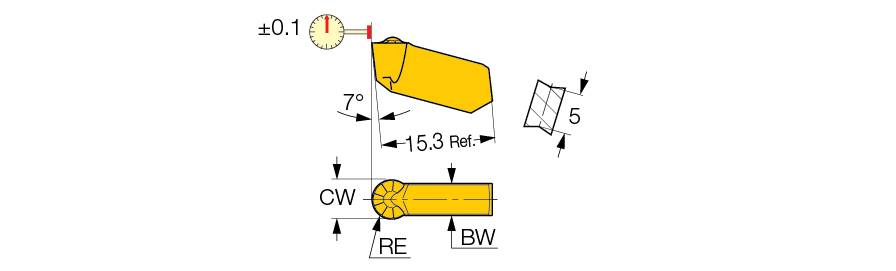

| Cutting Width (CW) | 5 mm | cerere | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 2.5 mm | Material de Prelucrat | | Oţel Inoxidabil | Fontă | Materiale Dure | Metale Neferoase | Aliaje Termo Rezistente | |
| Clearance Angle Major (AN) | 7 Degrees | Tipul Spargatorului de Aschii | Y |
| Insert Length (INSL) | 15.3 mm | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Minimum Bore Diameter (DMIN) | 70 mm | Tipul Masuratorii | Metric |
| Acoperire | Uncoated | Tool Type | Groove-Turn Utility Inserts |
| Sort | IC20 | Materialul Corpului | Carbide |
| Material Muchiei Aschietoare | Carbide | Unitate | M |
caracteristicile produsului
| Descrierea Familiei | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250°. | Numele Familiei | GIMY (full radius) |
| Remarci | DMIN for internal application=70 mm Can cut arcs to 250° | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.0065
Nume
Groove/Turn Indexable Inserts
Numele Familiei
GIMY (full radius)
Nume de Marca
Iscar
