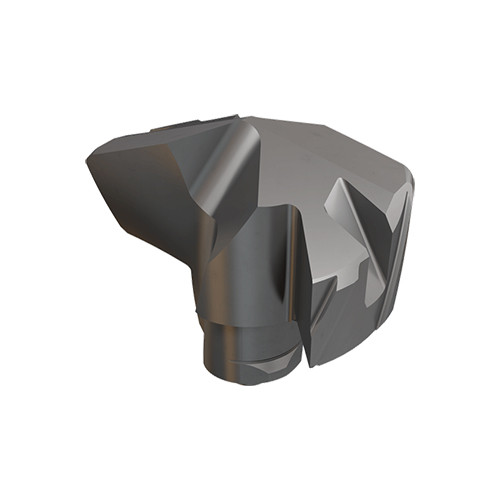

ICP 101-2M IC908
Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra).
specificațiile produsului

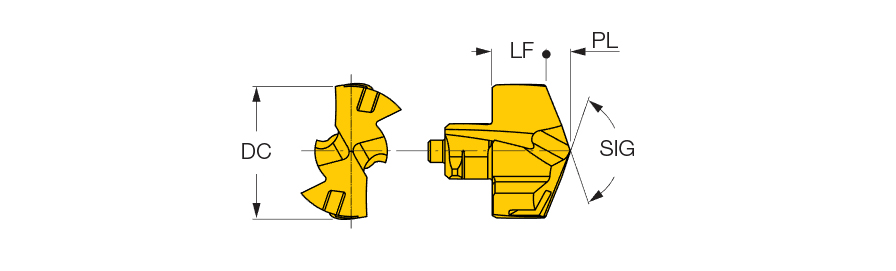

| Cutting Diameter (DC) | 10.1 mm | Tipul Masuratorii | Metric |
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Fontă | Materiale Dure | Aliaje Termo Rezistente | | Insert Thickness (S) | 6.2 mm |
| cerere | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 1.52 mm |
| Sort | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Acoperire | TiAlN |
| Insert Seat Size Code (SSC) | 10.0 | Materialul Corpului | Carbide |
| Functional Length (LF) | 4.68 mm | Unitate | M |
| Material Muchiei Aschietoare | Carbide |
caracteristicile produsului
| Descrierea Familiei | Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra). | COO | Israel |
| Remarci | Provides high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm |
Shipping Info
Greutate Colet
0.0095
