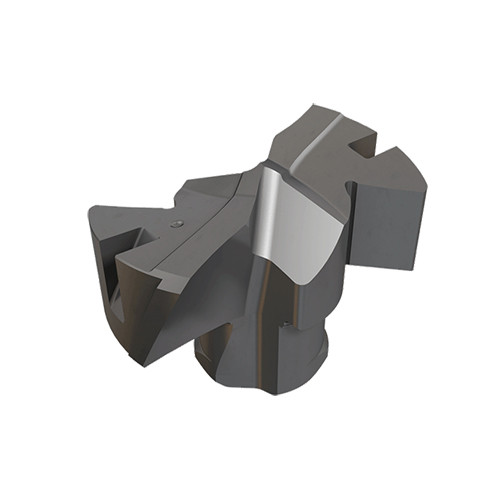

FCP 315 IC908
Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.
specificațiile produsului

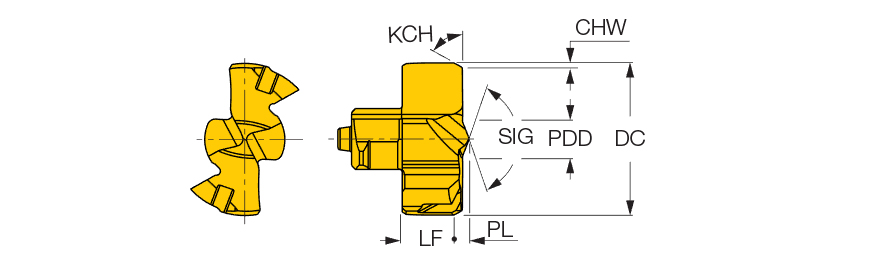

| Cutting Diameter (DC) | 31.5 mm | Insert Thickness (S) | 12 mm |
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Fontă | Materiale Dure | Aliaje Termo Rezistente | | Point Length (PL) | 2.18 mm |
| cerere | | Chamfering | Drilling | | Point Angle (SIG) | 140 Degrees |
| Sort | IC908 | Acoperire | TiAlN |
| Tool Type | Drilling Heads | Pilot Drill Diameter (PDD) | 9.28 mm |
| Protruding Length (LPR) | 13.88 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Insert Seat Size Code (SSC) | 31.0 | Unghiul Sanfrenului | 60 Degrees |
| Functional Length (LF) | 11.7 mm | Materialul Corpului | Carbide |
| Material Muchiei Aschietoare | Carbide | Unitate | M |
| Tipul Masuratorii | Metric |
caracteristicile produsului
| Descrierea Familiei | Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of 0.1 mm. | COO | Israel |
| Remarci | For nearly flat bottom hole applications |
Shipping Info
Greutate Colet
0.0930
