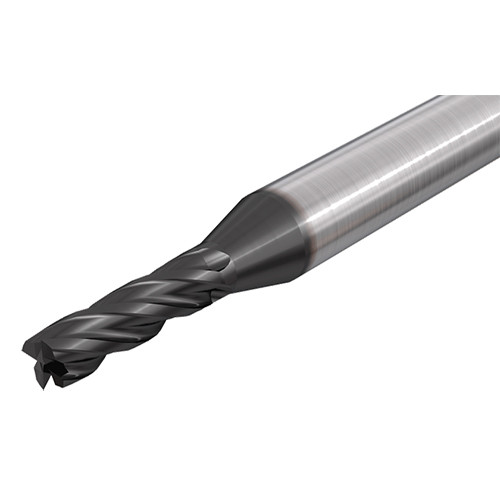

EC-A4 095-19C10-70 IC903
4 flute, 30° helix medium length solid carbide endmills for hard materials up to 65 HRC.
specificațiile produsului

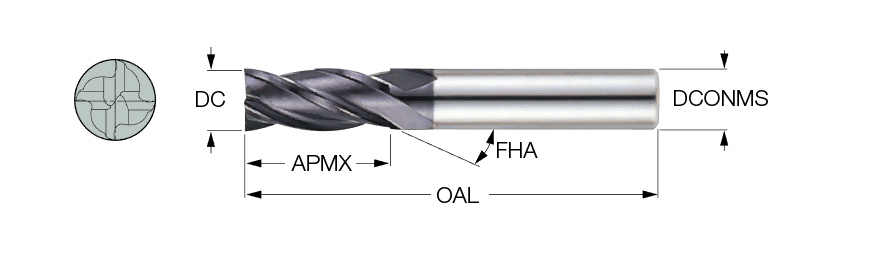

| Cutting Diameter (DC) | 9.5 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Sort | IC903 |
| Depth of Cut Maximum (APMX) | 19 mm | Neck Diameter (DN) | 9.5 mm |
| Overall Length (OAL) | 70 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Material Muchiei Aschietoare | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Acoperire | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Tip Coada | Round | Materialul Corpului | Carbide |
| Forma Capatului | Corner Radius | Tipul Masuratorii | Metric |
| Usable Length (LU) | 20 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Fontă | Materiale Dure | Aliaje Termo Rezistente | | Shank Diameter Tolerance (TCDMM) | h6 |
| cerere | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unitate | M |
| Corner Radius (RE) | 0 mm |
caracteristicile produsului
| Descrierea Familiei | 4 flute, 30° helix medium length solid carbide endmills for hard materials up to 65 HRC. | Numele Familiei | EC-A4 |
| Remarci | The DC tolerance is: 0 - -0.03 mm | Nume de Marca | Iscar |
| COO | Korea |
Shipping Info
Greutate Colet
0.0710
Nume
Square & Corner Radius End Mills
Numele Familiei
EC-A4
Nume de Marca
Iscar
