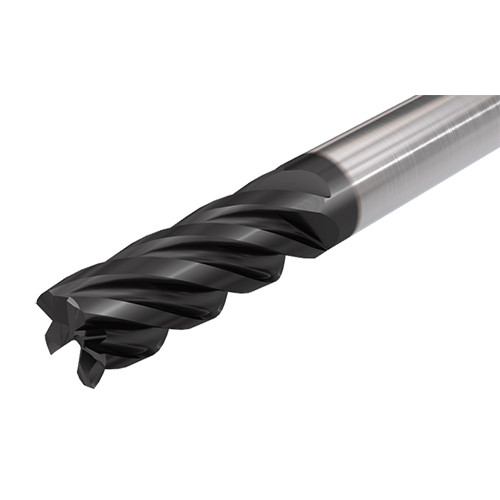

ECI-E5L375-937C37CF IC900
5 flute, 38° helix with variable pitch for roughing and finishing operations. High material removal rates chatter free. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 1XD.
specificațiile produsului

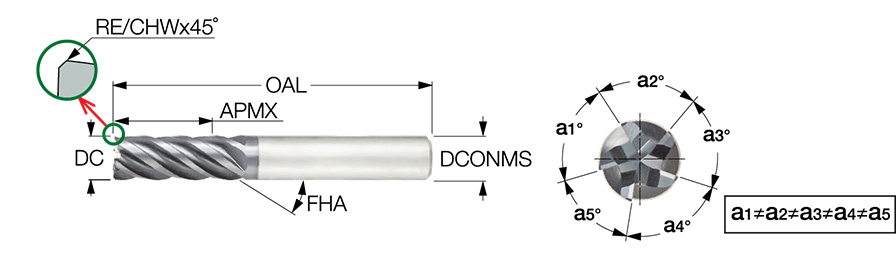

| Cutting Diameter (DC) | 3/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Sort | IC900 |
| Depth of Cut Maximum (APMX) | 0.937″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Material Muchiei Aschietoare | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Acoperire | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Materialul Corpului | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Echivalent Decimal | 0.375″ |
| Tip Coada | Round | Tipul Masuratorii | Inch |
| Forma Capatului | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 0.937″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Fontă | Materiale Dure | Aliaje Termo Rezistente | | Cutting Diameter Tolerance | e8 |
| cerere | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Unitate | I |
| Corner Chamfer Width (CHW) | 0.012″ |
caracteristicile produsului
| Descrierea Familiei | 5 flute, 38° helix with variable pitch for roughing and finishing operations. High material removal rates chatter free. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 1XD. | Numele Familiei | ECI-E5-CF |
| COO | Korea | Nume de Marca | Iscar |
Shipping Info
Greutate Colet
0.1631
Nume
Square & Corner Radius End Mills
Numele Familiei
ECI-E5-CF
Nume de Marca
Iscar
