RM-FCR-1500-H7S-CS-C IC07

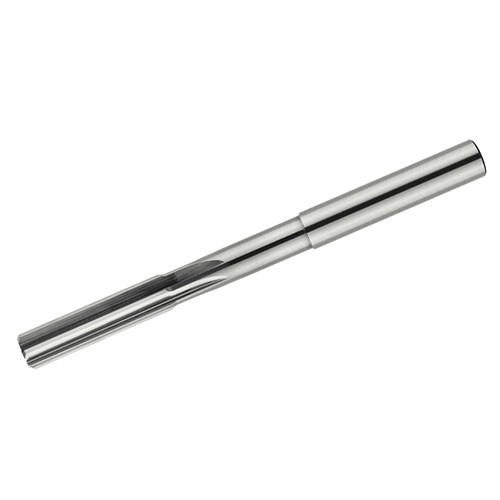

DIN 212C solid carbide reamers with straight flutes and a cylindrical shank for blind holes
specificațiile produsului
| Material de Prelucrat | | Oţel Inoxidabil | Metale Neferoase | Aliaje Termo Rezistente | | Acoperire | Uncoated |
| cerere | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Material Muchiei Aschietoare | Carbide |

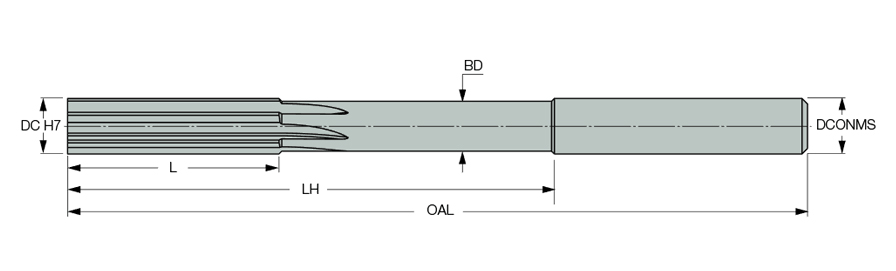

| Cutting Edge Length (L) | 50 mm | Tipul Masuratorii | Metric |
| Connection Diameter Machine Side (DCONMS) | 12.5 mm | Materialul Corpului | Carbide |
| Overall Length (OAL) | 162 mm | Unitate | M |
| Sort | IC07 |
caracteristicile produsului
| Descrierea Familiei | DIN 212C solid carbide reamers with straight flutes and a cylindrical shank for blind holes | COO | Italy |
| Remarci | Hole tolerance: H7 manufacturing tolerance according to DIN1420 Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated Special diameters are available on request |
Shipping Info
Greutate Colet
0.2960
