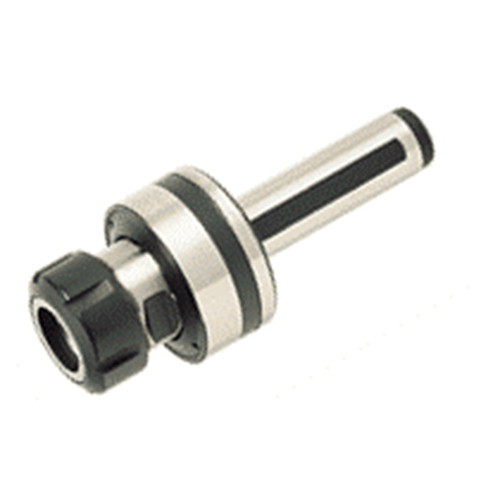

GFI ST 3/4 ER20

Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat.

Articol # ISC4500078

Numele de marcă: Iscar

Numărul de producător: 4500078

specificațiile produsului

Connection Size (CSI)	ER20	Connection Diameter Maximum Workpiece Side (DCONXWS)	0.514″
Body Diameter (BD)	1.339″	Body Length (LB)	1.358″
Connection Diameter Machine Side (DCONMS)	3/4″	Tipul Masuratorii	Inch
Flange Diameter (DF)	1.969″	Shank Length (LS)	2.559″
Protruding Length (LPR)	2.185″	Overall Length (OAL)	4.744″
Tool Type	Cylindrical Shanks	Materialul Corpului	Steel
Radial Float (RFI)	0.02″	Unitate	I
Connection Diameter Minimum Workpiece Side (DCONNWS)	0.041″

Descrierea Familiei	Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat.	Numele Familiei	GFI ST-ER
Remarci	Maximum 2000 RPM! For Adaptation Click on More Info	Nume de Marca	Iscar
COO	Israel

Greutate Colet

1.2324

Nume

Reamer Holders

Numele Familiei

GFI ST-ER

Nume de Marca

Iscar
