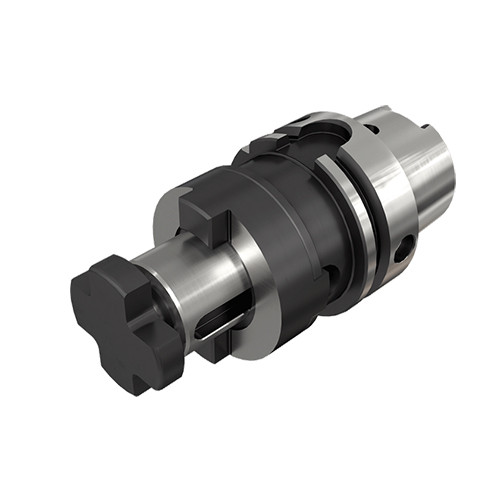

HSK A63 SEMC32X60
DIN 6358 COMBI shell mill holders with HSK DIN 69893 form A tapered shanks.
specificațiile produsului

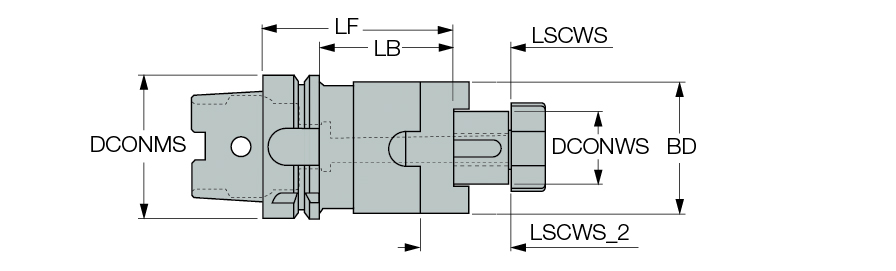

| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tipul Masuratorii | Metric |
| Shank Size (SS) | 63 | Materialul Corpului | Steel |
| Functional Length (LF) | 60 mm | Connection Code Machine Side (CCMS) | HSK |
| Body Diameter (BD) | 58 mm | Unitate | M |
| Clamping Length Workpiece Side (LSCWS) | 24 mm |
caracteristicile produsului
| Descrierea Familiei | DIN 6358 COMBI shell mill holders with HSK DIN 69893 form A tapered shanks. | Numele Familiei | HSK A-SEMC |
| Remarci | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). When mounting slitting cutters, remove the driving ring and use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For shank dimensions, Click on More Info | Nume de Marca | Iscar |
| COO | Italy |
Shipping Info
Greutate Colet
1.5490
Nume
Shell Mill Holders
Numele Familiei
HSK A-SEMC
Nume de Marca
Iscar
