DIN2080 50 SEM 32X 36

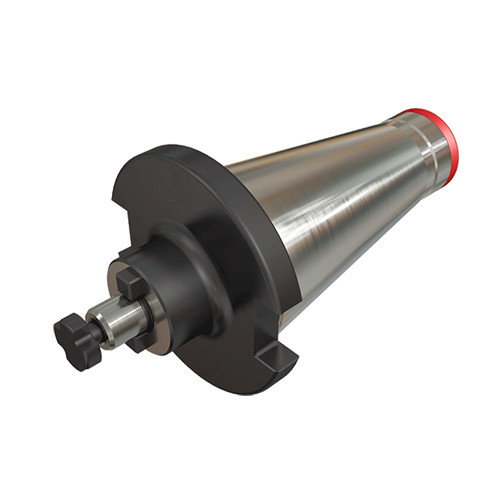

DIN 3937 shell mill holders with DIN 2080 A tapered shanks.
specificațiile produsului

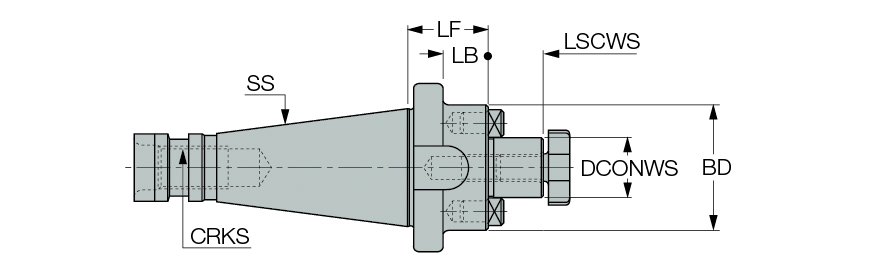

| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tool Type | DIN 2080 |
| Shank Size (SS) | 50 | Tipul Masuratorii | Metric |
| Functional Length (LF) | 36 mm | Materialul Corpului | Steel |
| Body Diameter (BD) | 66 mm | Unitate | M |
| Clamping Length Workpiece Side (LSCWS) | 24 mm |
caracteristicile produsului
| Descrierea Familiei | DIN 3937 shell mill holders with DIN 2080 A tapered shanks. | Numele Familiei | DIN2080-SEM |
| Remarci | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | Nume de Marca | Iscar |
| COO | Italy |
Shipping Info
Greutate Colet
3.4950
Nume
Shell Mill Holders
Numele Familiei
DIN2080-SEM
Nume de Marca
Iscar
