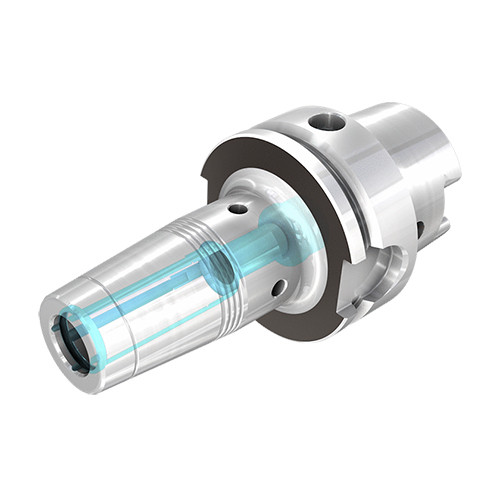

HSK A63 SRKIN6X80 CX
Thermal shrink chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance
specificațiile produsului

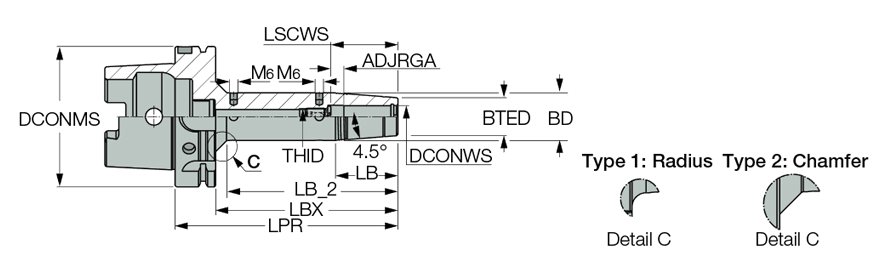

| Connection Diameter Machine Side (DCONMS) | 63 mm | Protruding Length (LPR) | 80 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Body Length Maximum (LBX) | 54 mm |
| Body Length (LB) | 38.1 mm | Clamping Length Workpiece Side (LSCWS) | 34 mm |
| Body Length_2 (LB_2) | 49 mm | Tipul Masuratorii | Metric |
| Body Diameter (BD) | 27 mm | Materialul Corpului | Steel |
| Body Taper End Diameter (BTED) | 21 mm | Unitate | M |
caracteristicile produsului
| Descrierea Familiei | Thermal shrink chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Numele Familiei | HSK A-SRKIN-CX |
| Remarci | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm Preset screw CX allows supply of coolant via JET channels - do not remove | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.9050
Nume
Shrink Fit Holders
Numele Familiei
HSK A-SRKIN-CX
Nume de Marca
Iscar
