specificațiile produsului

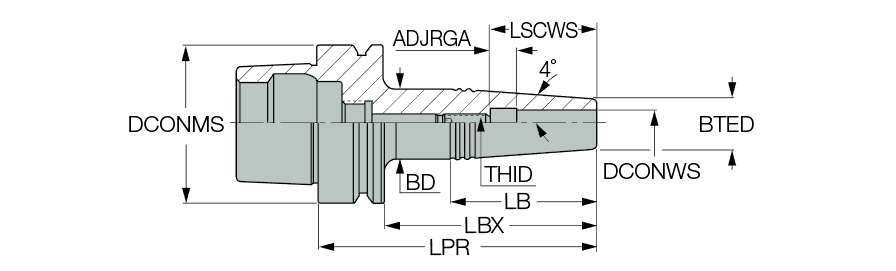

| Connection Diameter Machine Side (DCONMS) | 40 mm | Tipul Masuratorii | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Tool Type | HSK |
| Shank Size (SS) | 40 | Materialul Corpului | Steel |
| Body Length (LB) | 64 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 100 mm | Unitate | M |
| Overall Length (OAL) | 120 mm |
caracteristicile produsului

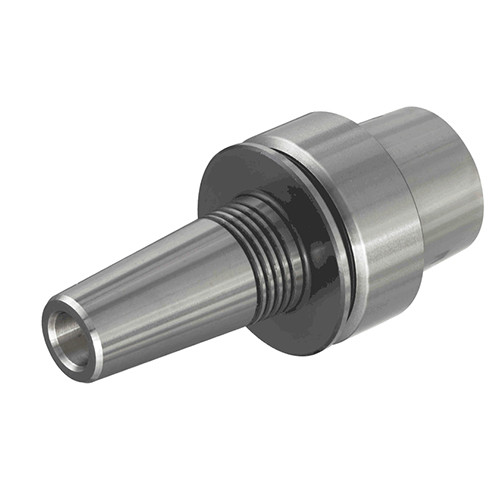

| Descrierea Familiei | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | Numele Familiei | HSK E-SRK |
| Remarci | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.3640
Nume
Shrink Fit Holders
Numele Familiei
HSK E-SRK
Nume de Marca
Iscar
