specificațiile produsului

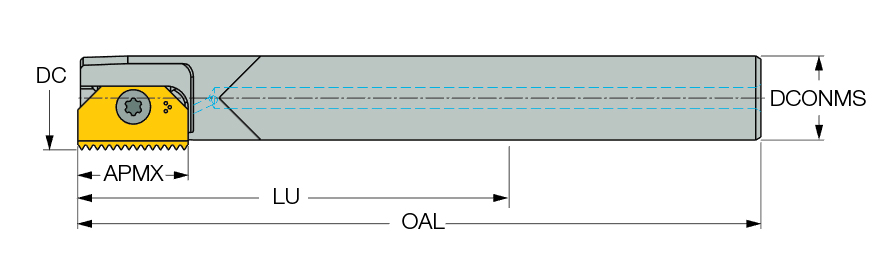

| Cutting Diameter (DC) | 15.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 12 mm | cerere | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 14 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 182.3 mm | Tipul Masuratorii | Metric |
| Flute Count (NOF) | 1 | Connection Code Machine Side (CCMS) | Cylindrical |
| Tip Coada | Round | Unitate | M |
| Materialul Corpului | Carbide |
caracteristicile produsului

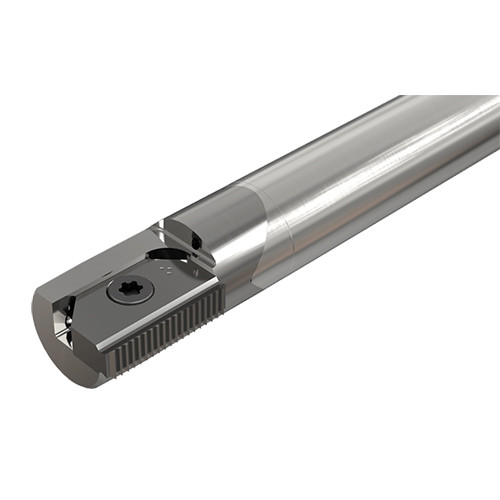

| Descrierea Familiei | Indexable threading endmills with long cylindrical carbide shanks and coolant holes. | COO | Israel |
| Remarci | For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang) |
Shipping Info
Greutate Colet
0.3090
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
