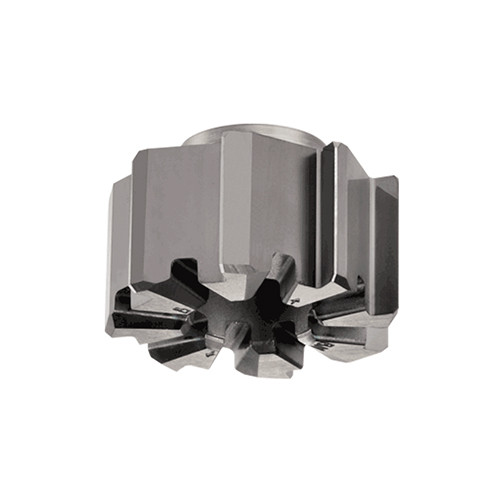

RM-BN5-13.500-H7SA IC08
Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming.
specificațiile produsului

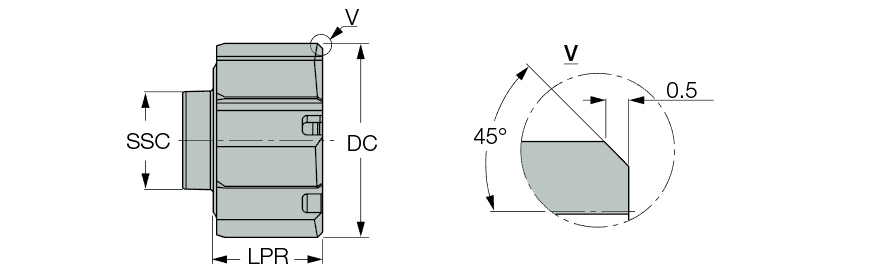

| Cutting Diameter (DC) | 13.5 mm | Acoperire | Uncoated |
| Cutting Edge Length (L) | 9.5 mm | Cutting Direction (HAND) | Straight |
| Insert Seat Size Code (SSC) | BN5 | Tool Type | Shell Reamers / BAYO Heads |
| Flute Count (NOF) | 6 | Tipul Masuratorii | Metric |
| Flute Helix Angle (FHA) | 0.5 Degrees | Sort | IC08 |
| Material de Prelucrat | | Metale Neferoase | | Materialul Corpului | Carbide |
| cerere | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Unitate | M |
| Material Muchiei Aschietoare | Carbide |
caracteristicile produsului
| Descrierea Familiei | Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming. | COO | Israel |
| Remarci | For user guide, click on More Info |
Shipping Info
Greutate Colet
0.0280
