PS BT30 45 M12 MAS1
specificațiile produsului
| Shank Size (SS) | 30 | cerere | | Collets & Accessories | |
| Body Diameter (BD) | 11 mm | Tipul Masuratorii | Metric |
| Connection Retention Knob Thread Size (CRKS) | M12 | Tool Type | PS BT-MAS |
| Body Length (LB) | 18 mm | Body Half Taper Angle (BHTA) | 45 Degrees |
| Overall Length (OAL) | 43 mm | Materialul Corpului | Steel |
| Body Length_2 (LB_2) | 23 mm | Unitate | M |
caracteristicile produsului
| Descrierea Familiei | BT pull stud with MAS retention knob. | Numele Familiei | PS BT-MAS (Pull Stud) |

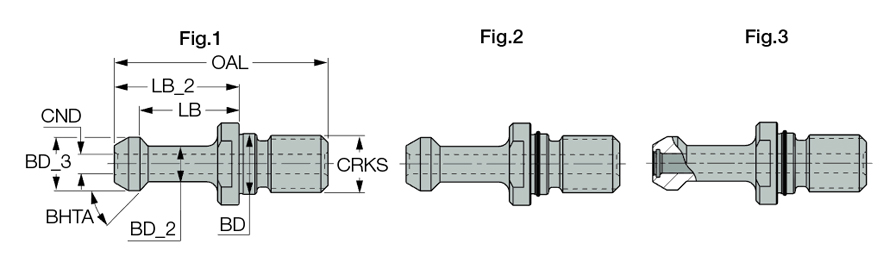

| Remarci | Fig 1: With or without coolant holes (coolant holes only in items with a B suffix) Fig 2: With coolant holes and external O-ring Fig 3: With coolant holes, external and internal O-rings | Nume de Marca | Iscar |
| COO | Italy |
Shipping Info
Greutate Colet
0.0400
Nume
Pull Studs (Retention Knobs)
Numele Familiei
PS BT-MAS (Pull Stud)
Nume de Marca
Iscar
