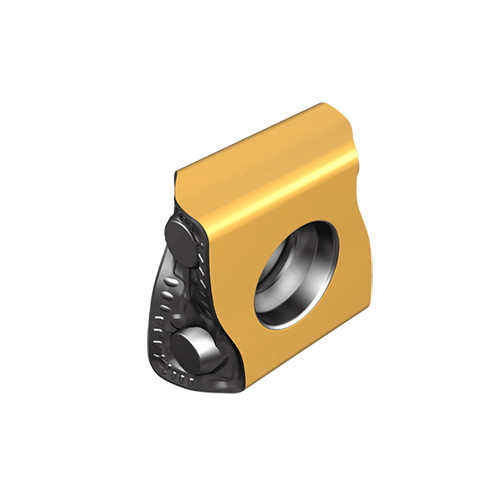

LNMX 150608R-HT IC907
Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on alloy and stainless steel and on cast iron.
specificațiile produsului
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Fontă | Materiale Dure | Metale Neferoase | Aliaje Termo Rezistente | | Min D.O.C. | 1 mm |
| cerere | | Ext. Tangential 75° Approach | Ext. Tangential 93° Approach | Ext. Tangential 93°Face Approa | Int. Tangential 93° Approach | | Depth of Cut Maximum (APMX) | 6 mm |
| Tipul Placutei | LNMX | Min. Turning Feed (ft(min)) | 0.25 mm/rev |

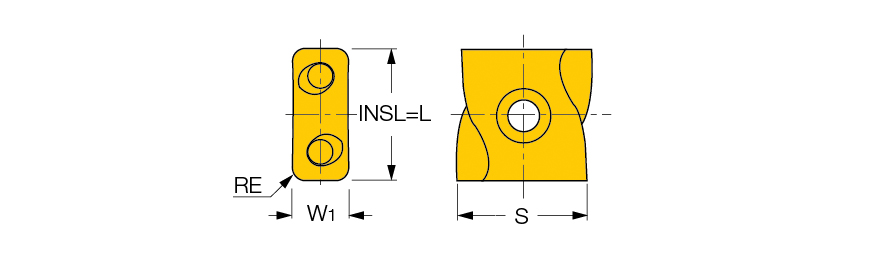

| Corner Radius (RE) | 0.8 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Size | 150608 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 15 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 13.4 mm | Tipul Spargatorului de Aschii | HT |
| Material Muchiei Aschietoare | Carbide | Tipul Masuratorii | Metric |
| Acoperire | TiAlN | Materialul Corpului | Carbide |
| Sort | IC907 | Unitate | M |
| Tool Type | Turn Negative Inserts |
caracteristicile produsului
| Descrierea Familiei | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on alloy and stainless steel and on cast iron. | Numele Familiei | LNMX-HT |
| COO | Israel | Nume de Marca | Iscar |
Shipping Info
Greutate Colet
0.0152
Nume
Turning Indexable Inserts
Numele Familiei
LNMX-HT
Nume de Marca
Iscar
