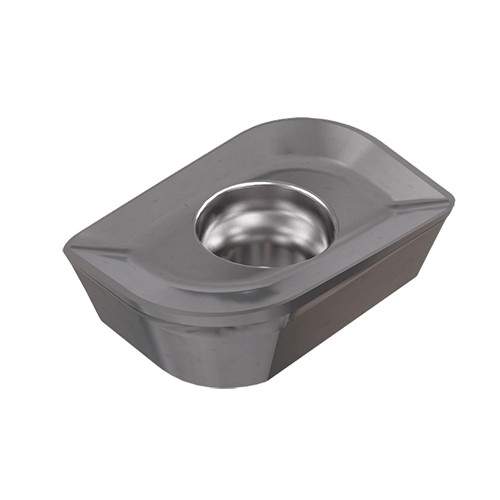

APKT 100312TR-RM IC928
HELIMILL inserts with different corner radii and a reinforced cutting edge for interrupted cut and heavy machining.
specificațiile produsului
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Aliaje Termo Rezistente | | Material Muchiei Aschietoare | Carbide |
| cerere | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

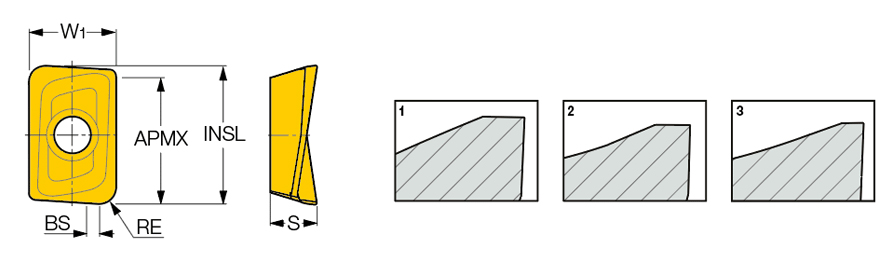

| Insert Length (INSL) | 10.5 mm | Figure | 3 |
| Corner Radius (RE) | 1.2 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.2 mm | Numarul Muchiilor Aschietoare | 2 |
| Insert Width (W1) | 6.7 mm | Cutting Edge Effective Length (LE) | 9.85 mm |
| Insert Thickness (S) | 3.47 mm | Tipul Masuratorii | Metric |
| Acoperire | TiAlN | Materialul Corpului | Carbide |
| Sort | IC928 | Unitate | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
caracteristicile produsului
| Descrierea Familiei | HELIMILL inserts with different corner radii and a reinforced cutting edge for interrupted cut and heavy machining. | Numele Familiei | APKT 1003..TR-RM |
| COO | Israel | Nume de Marca | Iscar |
Shipping Info
Greutate Colet
0.0032
Nume
Milling Indexable Inserts
Numele Familiei
APKT 1003..TR-RM
Nume de Marca
Iscar
