RCCW 2005-T IC328

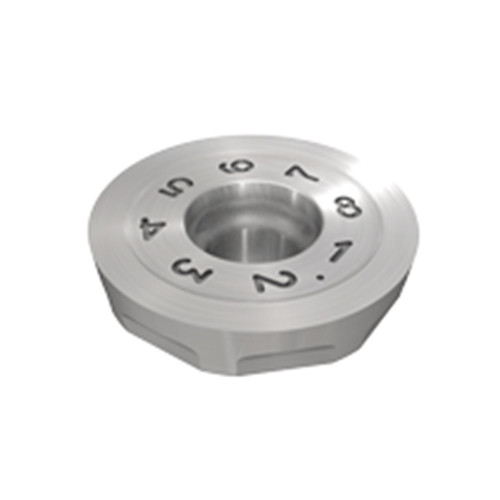

Round milling inserts with a mounting bottom cylinder and 8 indexing cavities on the insert flank. Used for roughing and finishing applications in the die & mold industry on alloyed and stainless steel.
specificațiile produsului
| Material de Prelucrat | | Oţel | Oţel Inoxidabil | Aliaje Termo Rezistente | | Material Muchiei Aschietoare | Carbide |
| cerere | | Facing | Profiling | Rampdown | | Tool Type | Single sided Inserts |

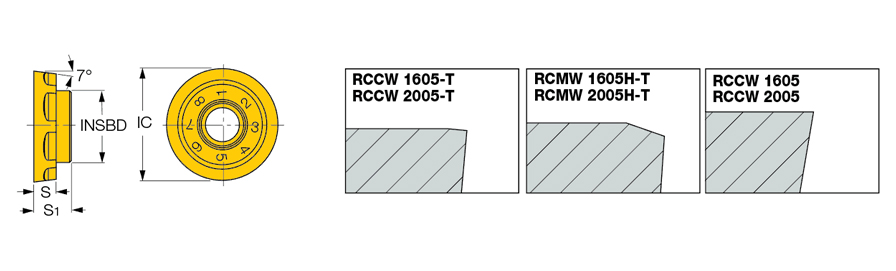

| Corner Radius (RE) | 10 mm | Minimum Feed per Tooth (fz(min)) | 0.12 mm/tooth |
| Insert Thickness (S) | 3.5 mm | Numarul Muchiilor Aschietoare | 8 |
| Acoperire | TiCN | Tipul Masuratorii | Metric |
| Sort | IC328 | Materialul Corpului | Carbide |
| Insert Body Diameter (INSBD) | 12 mm | Unitate | M |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
caracteristicile produsului
| Descrierea Familiei | Round milling inserts with a mounting bottom cylinder and 8 indexing cavities on the insert flank. Used for roughing and finishing applications in the die & mold industry on alloyed and stainless steel. | Numele Familiei | RCCW/RCMW-H-T |
| COO | Israel | Nume de Marca | Iscar |
Shipping Info
Greutate Colet
0.0188
Nume
Milling Indexable Inserts
Numele Familiei
RCCW/RCMW-H-T
Nume de Marca
Iscar
