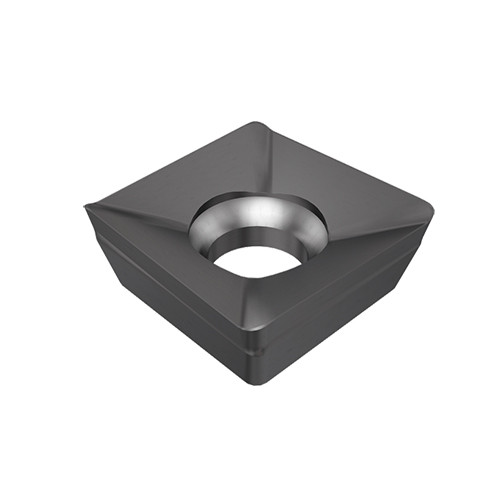

SOMT 060204-HQ IC950
HELIQUAD square milling inserts for general use.
specificațiile produsului
| Material de Prelucrat | | Oţel | Fontă | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| cerere | | Chamfering & Bottom Deburring | Counter Boring | Countersinking | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Material Muchiei Aschietoare | Carbide |

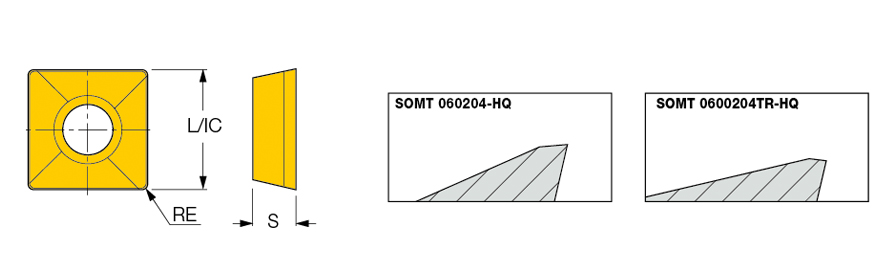

| Insert Length (INSL) | 6.16 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 4 mm | Numarul Muchiilor Aschietoare | 4 |
| Insert Thickness (S) | 2.56 mm | Tipul Masuratorii | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Materialul Corpului | Carbide |
| Sort | IC950 | Unitate | M |
caracteristicile produsului
| Descrierea Familiei | HELIQUAD square milling inserts for general use. | Numele Familiei | SOMT-HQ |
| COO | Israel | Nume de Marca | Iscar |
Shipping Info
Greutate Colet
0.0019
Nume
Milling Indexable Inserts
Numele Familiei
SOMT-HQ
Nume de Marca
Iscar
