HM390 ETC D20-3-C16-07

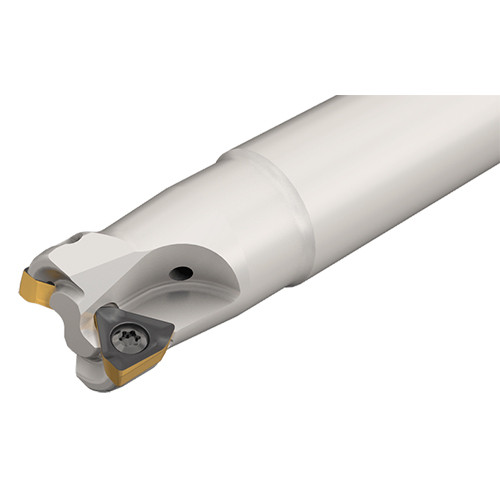

90° endmills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges.
specificațiile produsului
| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 55 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 55 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Tip Coada | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.4 Degrees | Tipul Masuratorii | Metric |
| cerere | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Materialul Corpului | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | HM390 TCKT 0703PCTR | Unitate | M |
| Head Length (LH) | 20 mm |
caracteristicile produsului
| Descrierea Familiei | 90° endmills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Numele Familiei | HM390 ETC-07 |
| Remarci | Insert clamping screw must be lubricated every indexing. Tightening torque 0.9 Nxm. | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.1360
Nume
Indexable End Mills
Numele Familiei
HM390 ETC-07
Nume de Marca
Iscar
