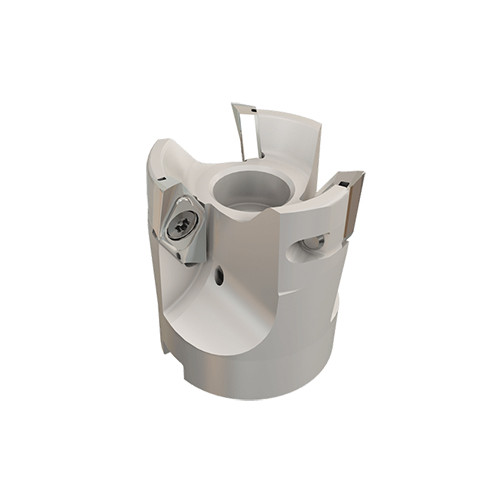

HSM90S FAL-D050-4-22-14
90° face mills carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces.
specificațiile produsului

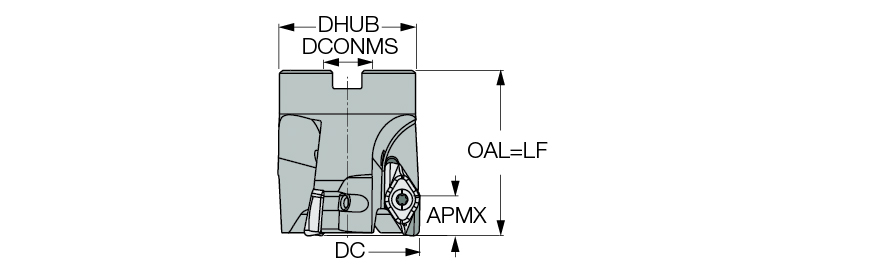

| Cutting Diameter (DC/DCX) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Materialul Corpului | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 13.5 mm | cerere | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tipul Masuratorii | Metric |
| Overall Length (OAL) | 57 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 47 mm | Tool Type | 90° Facemills for Al. & HTA |
| Arbor Style | A | Unitate | M |
| Master Insert Identification (MIID) | HSM90S APCR 140508R-P |
caracteristicile produsului
| Descrierea Familiei | 90° face mills carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces. | Numele Familiei | HSM90S FAL-14 |
| Remarci | Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert Insert tightening torque: 6 (Nxm) | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.6140
Nume
Indexable Face Mills
Numele Familiei
HSM90S FAL-14
Nume de Marca
Iscar
