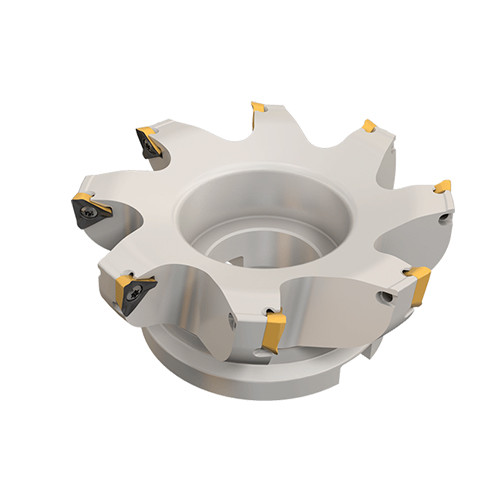

HM390 FTD D8.00-11-2.5-15
90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges.
specificațiile produsului

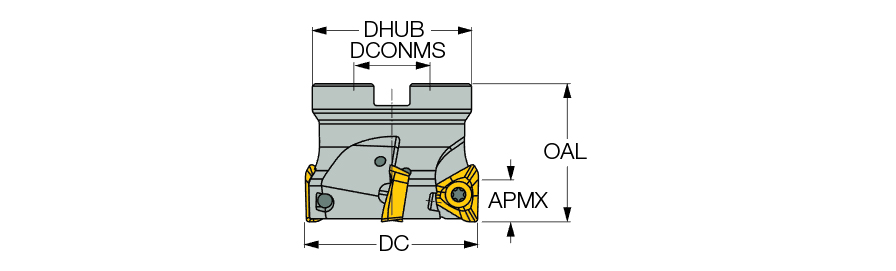

| Cutting Diameter (DC/DCX) | 8″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 8″ | Materialul Corpului | Steel |
| Cutting Item Count (CICT) | 11 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.512″ | cerere | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Tipul Masuratorii | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 5.31″ | Tool Type | 90° Facemills |

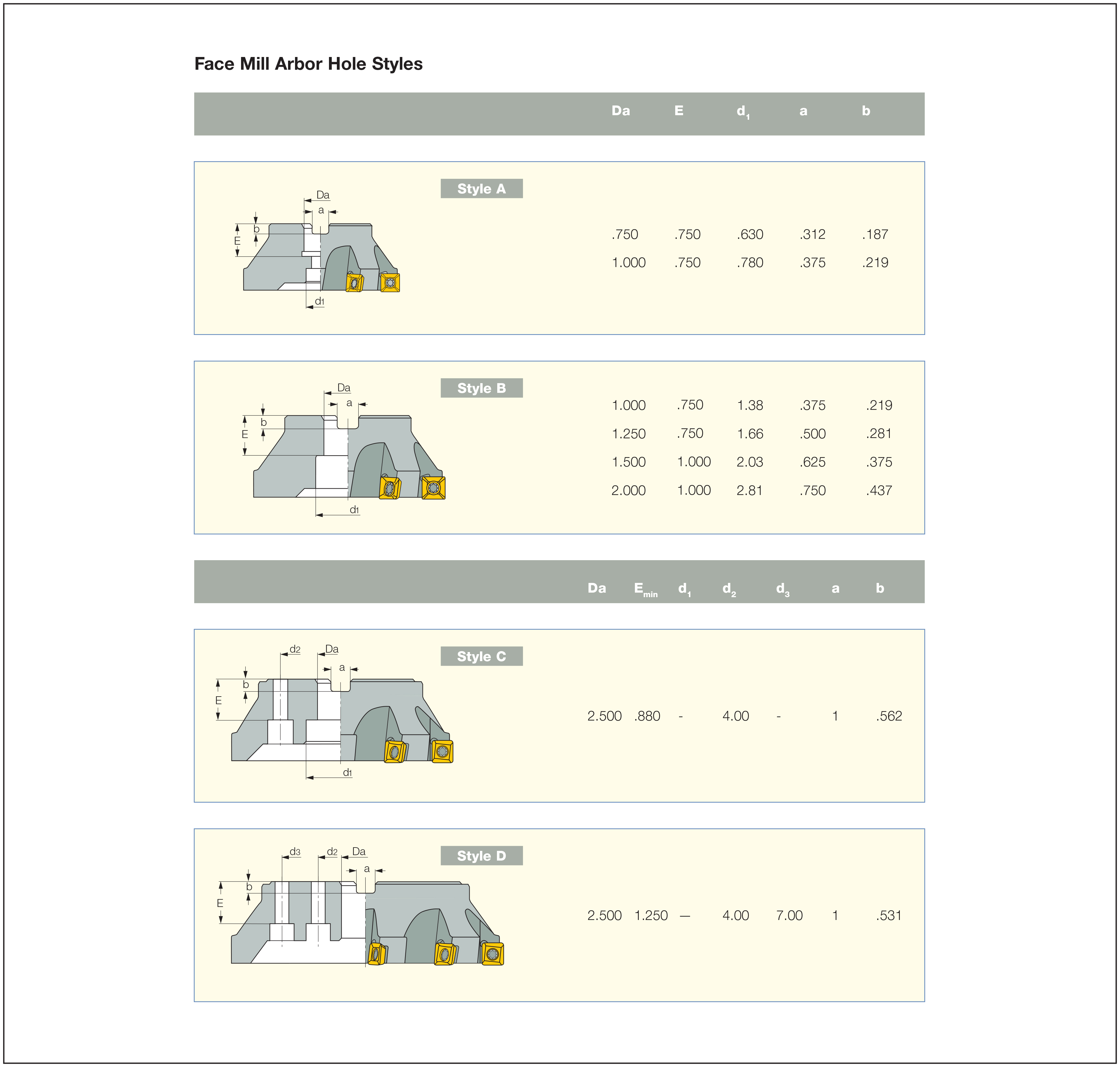

| Arbor Style | C | Unitate | I |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR |
caracteristicile produsului
| Descrierea Familiei | 90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges. | Numele Familiei | HM390 FTD-15 |
| Remarci | When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04 | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
13.3049
Nume
Indexable Face Mills
Numele Familiei
HM390 FTD-15
Nume de Marca
Iscar
