‎FF SOF 8/16 D080-07-27R

Name: FF SOF 8/16 D080-07-27R
Brand: HELIDO800
SKU: ISC3105772
Price: 906.78 EUR
Availability: InStock

Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges.

Articol # ISC3105772

Numele de marcă: Iscar

Numărul de producător: 3105772

specificațiile produsului

Cutting Diameter (DC/DCX)	85.4 mm	Master Insert Identification (MIID)	ONHU 050500-N-HP
Cutting Diameter (DC)	80 mm	Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter Maximum (DCX)	85.4 mm	Materialul Corpului	Steel
Cutting Item Count (CICT)	7	Cutting Direction (HAND)	Right Hand
Depth of Cut Maximum (APMX)	2.7 mm	cerere	\| Facing \| Fast Feed Milling \| Profiling \| Slanted Shoulder & Chamfer \|
Connection Diameter Machine Side (DCONMS)	27 mm	Tipul Masuratorii	Metric
Overall Length (OAL)	40.4 mm	Tool Cutting Edge Angle (KAPR)	15 Degrees
Hub Diameter (DHUB)	82.6 mm	Tool Type	Fast Feed Face mill
Arbor Style	B	Unitate	M

Descrierea Familiei	Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges.	Numele Familiei	FF SOF

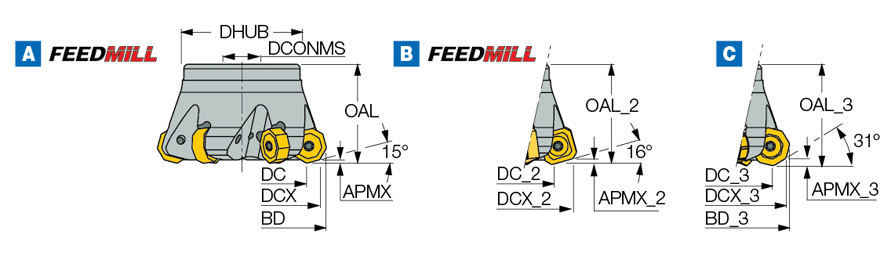

Remarci	A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with OXMT 0507R08-FF insert Use only Torx Plus keys For adaptation click on More Info	Nume de Marca	Iscar
COO	Israel

Greutate Colet

1.2270

Nume

Indexable Face Mills

Numele Familiei

FF SOF

Nume de Marca

Iscar
