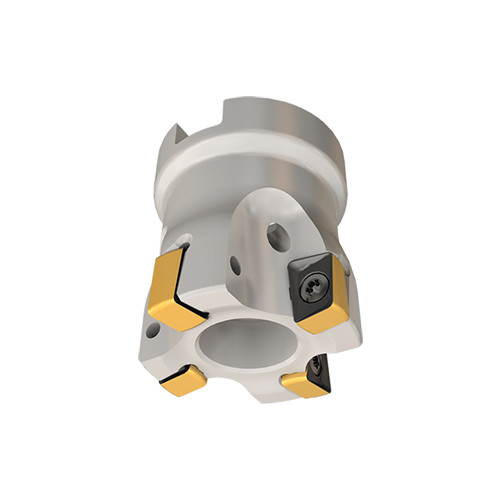

H490 F90AX D040-6-16-09
90° face mills carrying H490 ANKX 09.. double-sided rectangular inserts with 4 helical cutting edges.
specificațiile produsului

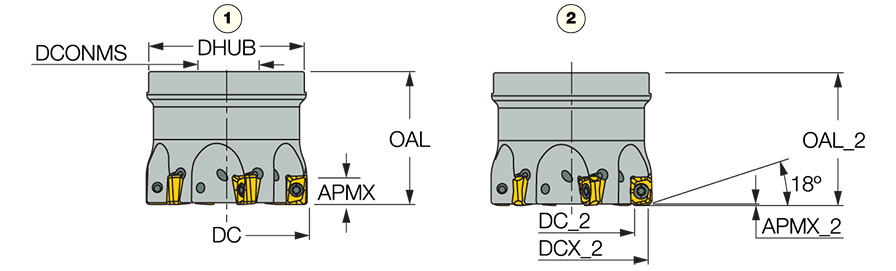

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | H490 ANCX 090404PDR |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm | Materialul Corpului | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | cerere | | Facing | Shouldering | Side Plunging | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tipul Masuratorii | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 38.4 mm | Tool Type | 90° Facemills |

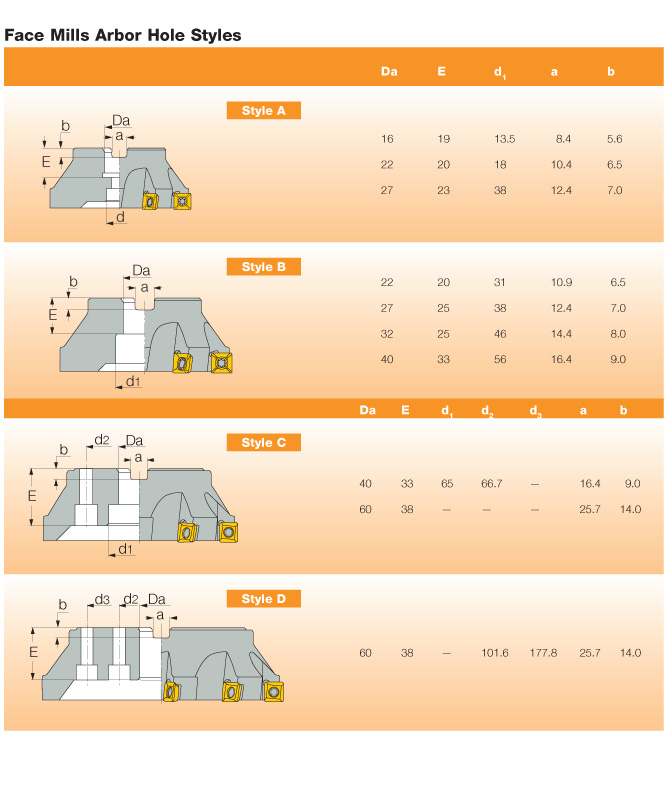

| Arbor Style | A | Unitate | M |
caracteristicile produsului
| Descrierea Familiei | 90° face mills carrying H490 ANKX 09.. double-sided rectangular inserts with 4 helical cutting edges. | Numele Familiei | H490 F90AX-09 |
| Remarci | 1- with standard square insert, 2- with FF (fast feed) insert Ramping angle is valid only when H490 ANKX 0904R12T-FF insert is used When assembled the H490 ANKX 0904R12T-FF insert, tool diameter enlarges by 0.1 mm | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
0.3610
Nume
Indexable Face Mills
Numele Familiei
H490 F90AX-09
Nume de Marca
Iscar
