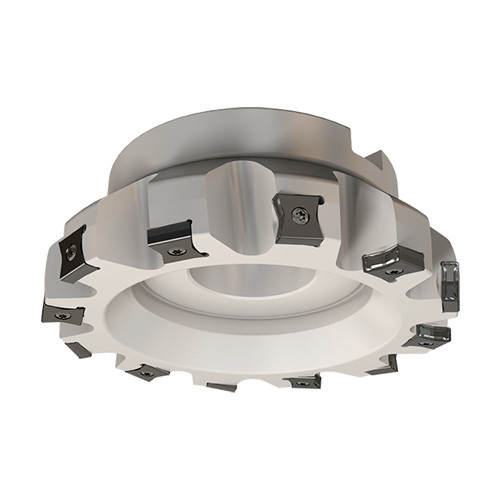

F86LNX D4.0-10-1.50-R-N15
86° face mills using all 8 cutting edges of LN..1506... tangentially clamped inserts.
specificațiile produsului
| Cutting Diameter (DC/DCX) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 4″ | Materialul Corpului | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3″ | cerere | | Facing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Tipul Masuratorii | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 86 Degrees |
| Hub Diameter (DHUB) | 3.27″ | Tool Type | 90° Facemills |
| Arbor Style | B | Unitate | I |
| Master Insert Identification (MIID) | LNKX 1506PN-N PL |
caracteristicile produsului
| Descrierea Familiei | 86° face mills using all 8 cutting edges of LN..1506... tangentially clamped inserts. | Numele Familiei | F86LNX-15 |

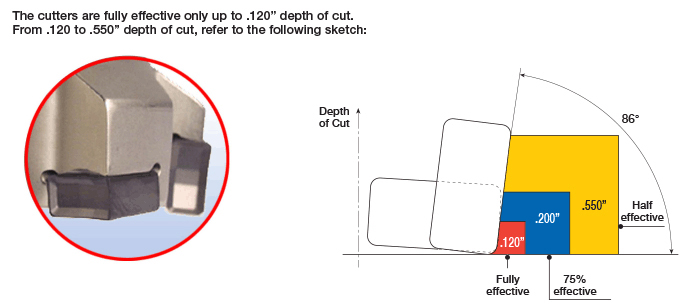

| Remarci | For ap>3.0 mm zeff is half the number indicated in the table. The F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1506.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position. | Nume de Marca | Iscar |
| COO | Israel |
Shipping Info
Greutate Colet
4.6958
Nume
Indexable Face Mills
Numele Familiei
F86LNX-15
Nume de Marca
Iscar
